通过dubbo监控中心和后台管理可以很好的监控dubbo服务，监控服务端服务和客户端调用情况，调用次数，调用日志，方便问题查找。下面我们看看dubbo的管理后台和监控中心怎么部署。

1.软件下载

部署管理后台和监控中心需要以下软件

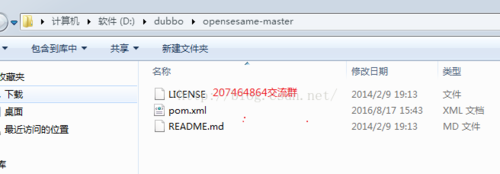

下载完成后，解压，切换到opensesame-master目录下（如上图），打开CMD命令，执行如下命令

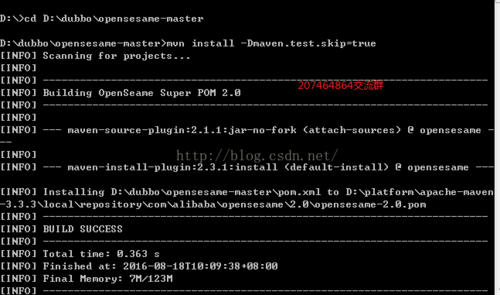

mvn install -Dmaven.test.skip=true

dubbo管理平台dubbo-admin部署

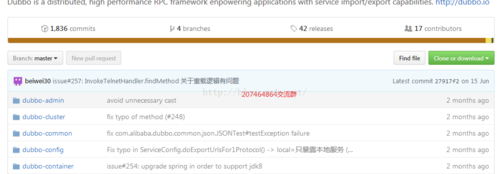

解压dubbo-master文件夹，打开CMD命令，切换到dubbo-master目录，执行

mvn install -Dmaven.test.skip=true命令，完成后，会看到dubbo-admin的target文件夹下有dubbo-admin-2.5.4-SNAPSHOT.war

如下图

解压tomcat，将dubbo-admin-2.5.4-SNAPSHOT.war包拷贝到Tomcat的webapps文件夹下

然后启动tomcat,启动tomcat的方法如下，

切换到tomcat的bin文件夹，启动startup.bat命令

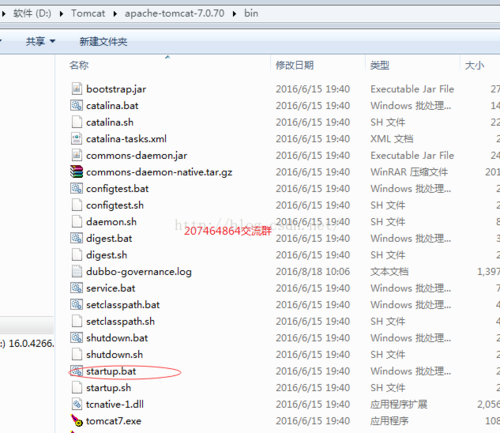

目录如下

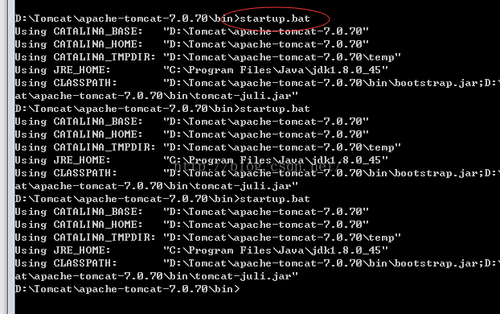

命令如下

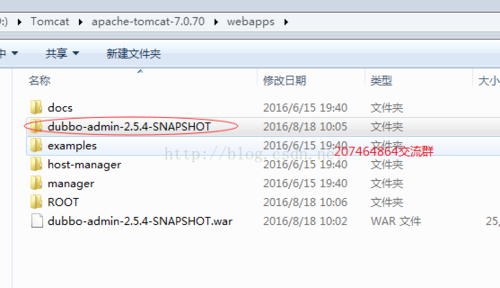

此时dubbo-admin-2.5.4-SNAPSHOT.war会自动解压，在webapps目录下生成一个dubbo-admin-2.5.4-SNAPSHOT文件夹，

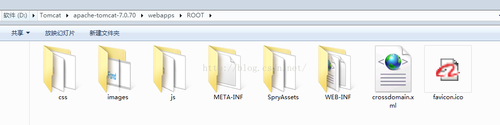

将webapps下的root文件夹下的内容全部删除，将dubbo-admin-2.5.4-SNAPSHOT文件夹下的内容全部拷贝到Root文件夹下，最终结果如下图

修改下root文件夹下web-inf文件夹下的dubbo.properties文件，

文件内容如下

dubbo.registry.address=127.0.0.1:2181,127.0.0.1:2182,127.0.0.1:2183

dubbo.admin.root.password=root

dubbo.admin.guest.password=guest

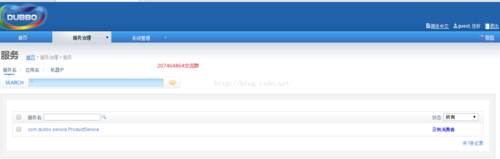

打开浏览器输入地址: http://localhost:8080/,输入账号和密码登录guest/guest

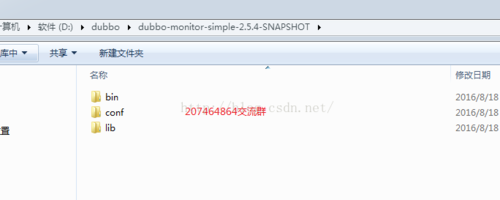

在本地仓库中或者dubbo-monitor-simple项目中找到dubbo-monitor-simple-2.5.4-SNAPSHOT-assembly.tar.gz文件，拷贝到D盘，解压后如下图

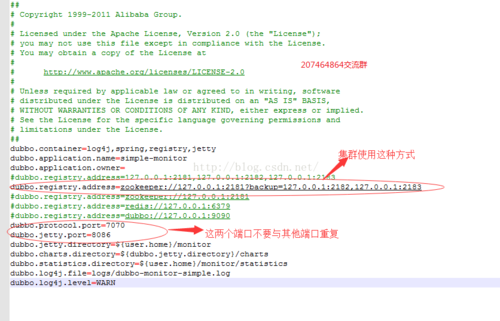

找到conf文件夹下的dubbo.properties文件，修改配置文件如下

[html] view plain copy

<span style="font-family:Microsoft YaHei;">##
# Copyright 1999-2011 Alibaba Group.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
##
dubbo.container=log4j,spring,registry,jetty
dubbo.application.name=simple-monitor
dubbo.application.owner=
#dubbo.registry.address=127.0.0.1:2181,127.0.0.1:2182,127.0.0.1:2183
dubbo.registry.address=zookeeper://127.0.0.1:2181?backup=127.0.0.1:2182,127.0.0.1:2183
#dubbo.registry.address=zookeeper://127.0.0.1:2181
#dubbo.registry.address=redis://127.0.0.1:6379
#dubbo.registry.address=dubbo://127.0.0.1:9090
dubbo.protocol.port=7070
dubbo.jetty.port=8086
dubbo.jetty.directory=${user.home}/monitor
dubbo.charts.directory=${dubbo.jetty.directory}/charts
dubbo.statistics.directory=${user.home}/monitor/statistics
dubbo.log4j.file=logs/dubbo-monitor-simple.log
dubbo.log4j.level=WARN
</span>
